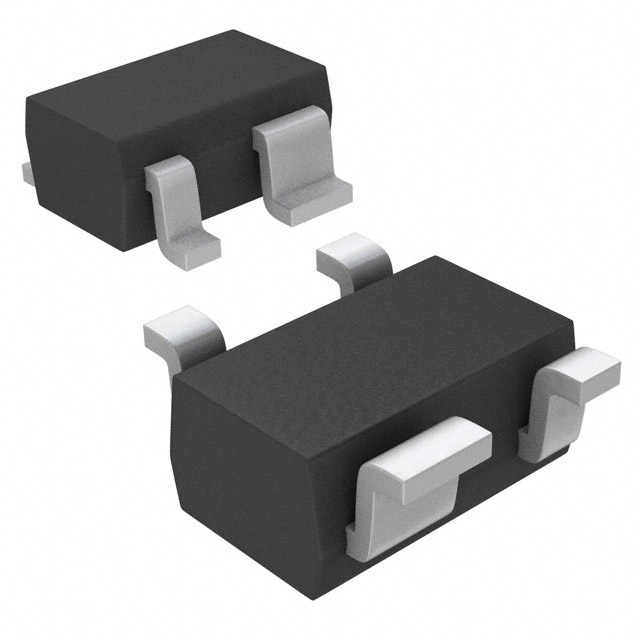

Pictures for reference only, please check the datasheet

UDT14A05L03

Name: UDT14A05L03
Brand: Yageo
SKU: F004-UDT14A05L03-19-A-0000-X-Y-YAG6696CT-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Yageo

Mfr. Part #:

UDT14A05L03

Walsoon Tech #:

F004-UDT14A05L03-19-A-0000-X-Y-YAG6696CT-ND

Description:

TVS ARRAY ESD, SOT-143, 5V 25V,

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

UDT14A05L03 Details
Packing And Shipping
Payment Method
Quality Control

Yageo,UDT14A05L03 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for UDT14A05L03 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Polarity	单向通道
VBR	6V
VRWM	5V
Package	SOT-143
Peak Pulse Current	12A
Operating Temperature-Min	-55℃
Operating Temperature-Max	+150℃
Clamping voltage	25V
junction capacitance	1.5pF
Operating Temperature Range	-55℃~+150℃
工厂最小包装	1
寿命周期	量产
ROHS	yes
Maximum Ppp	600W
Termination type	贴片
