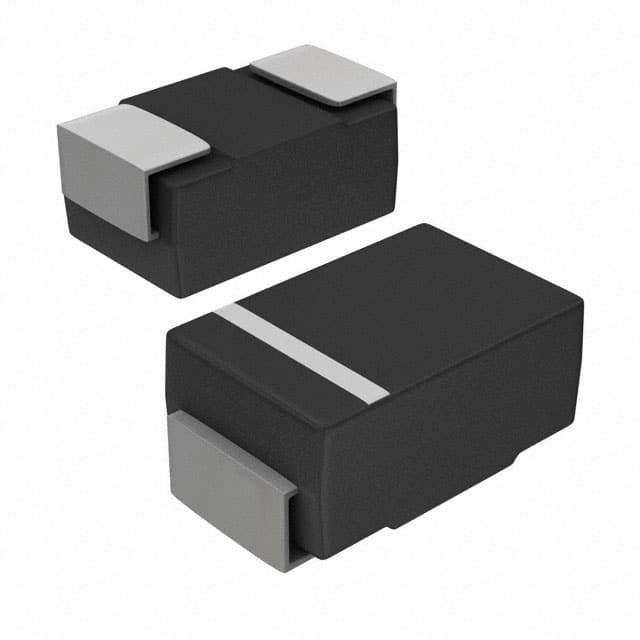

Pictures for reference only, please check the datasheet

SMAJ22A-AT/TR13

Name: SMAJ22A-AT/TR13
Brand: Yageo
SKU: F004-SMAJ22A-AT/TR13-19-A-0000-X-N-13-SMAJ22A-AT/TR13TR-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Yageo

Mfr. Part #:

SMAJ22A-AT/TR13

Walsoon Tech #:

F004-SMAJ22A-AT/TR13-19-A-0000-X-N-13-SMAJ22A-AT/TR13TR-ND

Description:

Transient Voltage Suppressors (TVS)

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

SMAJ22A-AT/TR13 Details
Packing And Shipping
Payment Method
Quality Control

Yageo,SMAJ22A-AT/TR13 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for SMAJ22A-AT/TR13 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	DO-214AC
VBR	24.4V
Operating Temperature Range	-55℃~+150℃
Polarity	单向通道
Clamping voltage	35.5V
VRWM	22V
工厂最小包装	5000
寿命周期	量产
ROHS	no
Pd-Power Dissipation	400W
Termination type	贴片
Maximum Ppp	400W
