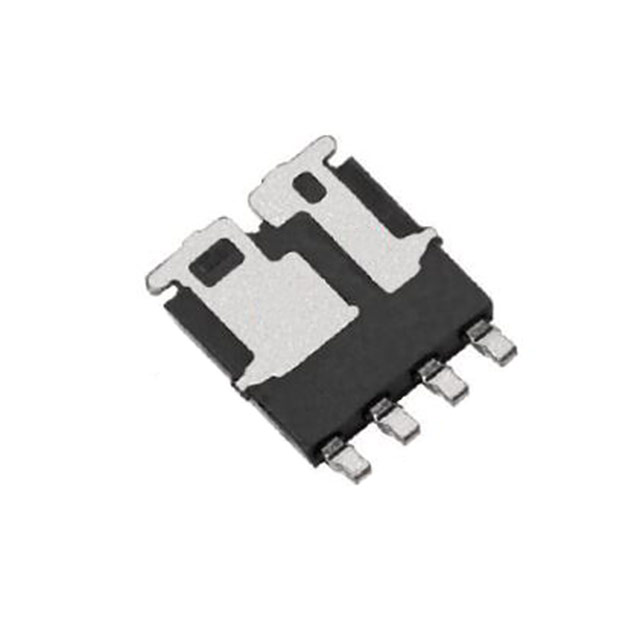

Pictures for reference only, please check the datasheet

SQJ200EP-T1_GE3

Name: SQJ200EP-T1_GE3
Brand: Vishay
SKU: F004-SQJ200EP-T1_GE3-67-A-0000-X-Y-SQJ200EP-T1_GE3DKR-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Vishay

Mfr. Part #:

SQJ200EP-T1_GE3

Walsoon Tech #:

F004-SQJ200EP-T1_GE3-67-A-0000-X-Y-SQJ200EP-T1_GE3DKR-ND

Description:

Mosfet Array 2 N-Channel (Dual) 20V 20A, 60A 27W, 48W Surface Mount PowerPAK® SO-8 Dual Asymmetric

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

SQJ200EP-T1_GE3 Details
Packing And Shipping
Payment Method
Quality Control

Vishay,SQJ200EP-T1_GE3 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for SQJ200EP-T1_GE3 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

VDS	20 V
Termination type	SMD/SMT
Pd-Power Dissipation	27 W, 48 W
Continuous drain current	20 A, 60 A
Qualification level	AEC-Q101
Rds On	7.4 mOhms, 3.1 mOhms
工厂最小包装	1
寿命周期	量产
ROHS	no
Transistor polarity	MOSFET
VGS	20 V
Operating Temperature Range	- 55 C~+ 175 C
Package	PowerPAK-SO-8L-4
Qg	18 nC, 43 nC
Height	1.04 mm
Circuit Branch Number	2 Channel
Length	6.15 mm
Width	5.13 mm
