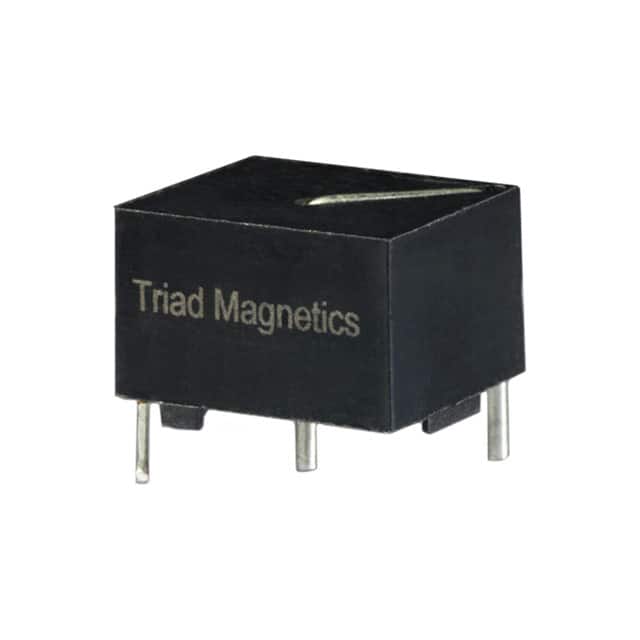

Pictures for reference only, please check the datasheet

CST25-0500

Name: CST25-0500
Brand: Triad Magnetics
SKU: F004-CST25-0500-731-A-0000-X-Y-237-2338-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Triad Magnetics

Mfr. Part #:

CST25-0500

Walsoon Tech #:

F004-CST25-0500-731-A-0000-X-Y-237-2338-ND

Description:

25A 1:500 Current Sense Transformer 50kHz ~ 500kHz 16Ohm 470mH Through Hole

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

CST25-0500 Details
Packing And Shipping
Payment Method
Quality Control

Triad Magnetics,CST25-0500 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for CST25-0500 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Frequency Range	50 kHz to 500 kHz
Inductance	470 mH
Turns ratio	1:500
Rated Current	25 A
Termination type	Through Hole
工厂最小包装	25
寿命周期	量产
ROHS	yes
Length	17 mm
Secondary coil impedance	16 Ohms
Package	0.669"长x0.591"宽（17.00mmx15.00mm）
Height	11.8 mm
Width	15 mm
