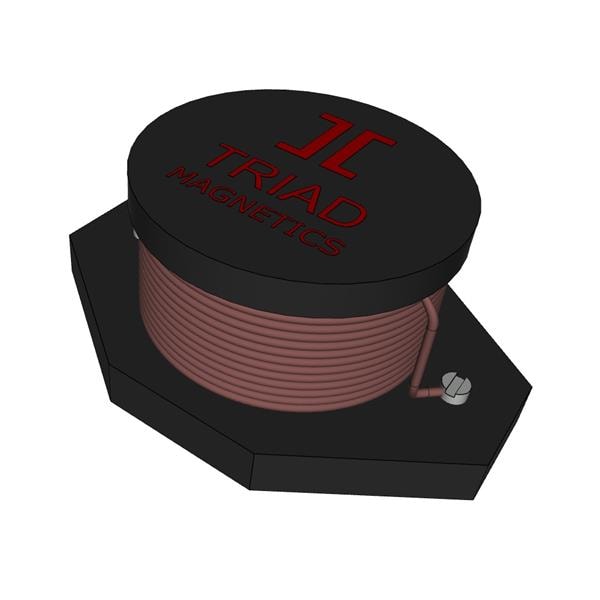

Pictures for reference only, please check the datasheet

AX97-302R2

Name: AX97-302R2
Brand: Triad Magnetics
SKU: F001-AX97-302R2-731-A-0000-X-Y-553-SMT30-2R2
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Triad Magnetics

Mfr. Part #:

AX97-302R2

Walsoon Tech #:

F001-AX97-302R2-731-A-0000-X-Y-553-SMT30-2R2

Description:

2.2uH 20% 13.46mm*9.4mm*5.9mm 20mΩ 7.4A 贴片

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

AX97-302R2 Details
Packing And Shipping
Payment Method
Quality Control

Triad Magnetics,AX97-302R2 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for AX97-302R2 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Inductance Value	2.2uH
DC Resistance DCR	20mΩ
Termination type	贴片
Tolerance	20%
Length	13.46mm
Height	5.9mm
Width	9.4mm
Rated Current	7.4A
工厂最小包装	350
寿命周期	量产
ROHS	yes
Brand	Triad Magnetics
Rated Current (DC current)	7.4 A
shielding	不屏蔽
