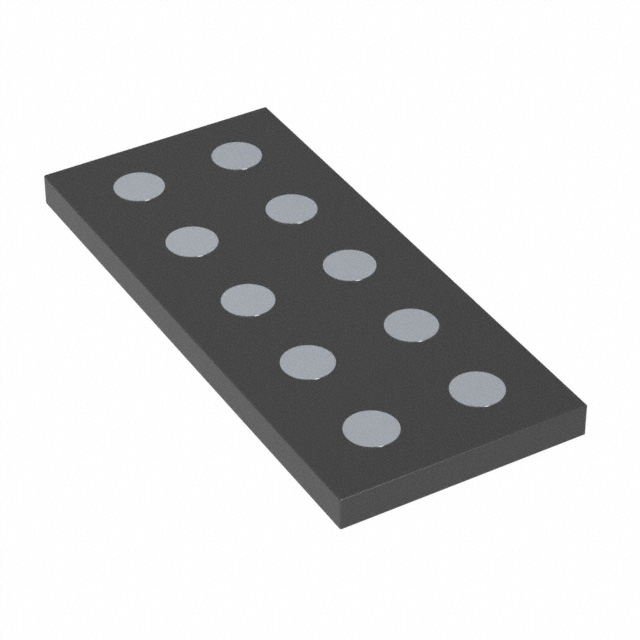

Pictures for reference only, please check the datasheet

CSD87501LT

Name: CSD87501LT
Brand: TI
SKU: F01202-CSD87501LT-5-A-0000-X-N-J56:1989_08571414
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Mfr. Part #:

CSD87501LT

Walsoon Tech #:

F01202-CSD87501LT-5-A-0000-X-N-J56:1989_08571414

Description:

Trans MOSFET N-CH 10-Pin PicoStar T/R

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

CSD87501LT Details
Packing And Shipping
Payment Method
Quality Control

TI,CSD87501LT is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for CSD87501LT to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Continuous drain current	14 A
VDS	30 V
Rds On	4.6 mOhms
Termination type	SMD/SMT
Pd-Power Dissipation	2.5 W
工厂最小包装	250
寿命周期	量产
ROHS	no
Length	3.37 mm
Width	1.47 mm
VGS	20 V
Qg	15 nC
Height	0.2 mm
Package	Picostar-10(3.37x1.47)
Operating Temperature Range	- 55 C~+ 150 C
Circuit Branch Number	2 Channel
Transistor polarity	MOSFET
