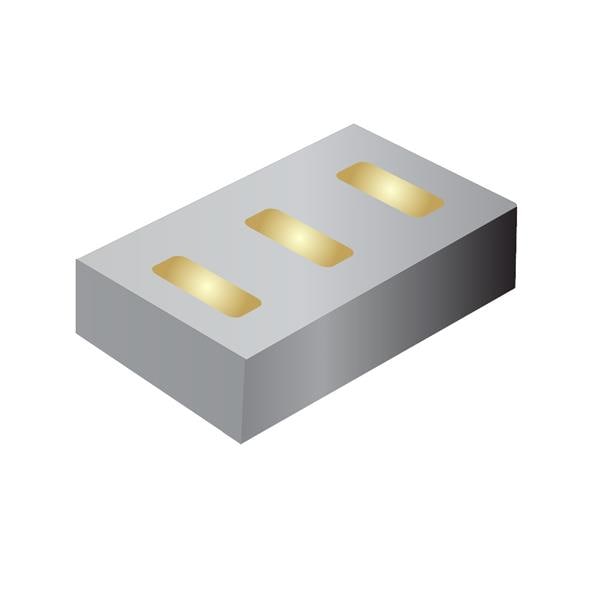

Pictures for reference only, please check the datasheet

CSD17585F5

Name: CSD17585F5
Brand: TI
SKU: F001-CSD17585F5-5-A-0000-X-Y-595-CSD17585F5
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Mfr. Part #:

CSD17585F5

Walsoon Tech #:

F001-CSD17585F5-5-A-0000-X-Y-595-CSD17585F5

Description:

30V、N 沟道 NexFET MOSFET?、单路 LGA 0.8x1.5、33mΩ

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

CSD17585F5 Details
Packing And Shipping
Payment Method
Quality Control

TI,CSD17585F5 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for CSD17585F5 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Pd-Power Dissipation	1.4 W
Package	PICOSTAR-3
Continuous drain current	5.9 A
工厂最小包装	3000
寿命周期	量产
ROHS	no
Operating Temperature Range	- 55 C~+ 150 C
VDS	30 V
Transistor polarity	MOSFET
Qg	5.1 nC
Height	0.35 mm
VGS	20 V
Length	1.53 mm
Width	0.77 mm
Termination type	SMD/SMT
Rds On	27 mOhms
Circuit Branch Number	1 Channel
