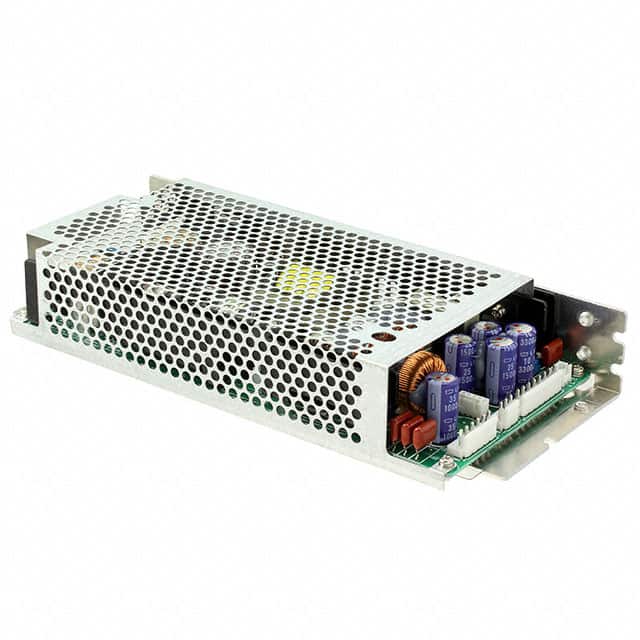

Pictures for reference only, please check the datasheet

ZWQ1305224/A

Name: ZWQ1305224/A
Brand: TDK
SKU: F002-ZWQ1305224/A-17-A-2233-X-Y-63326089
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

TDK

Mfr. Part #:

ZWQ1305224/A

Walsoon Tech #:

F002-ZWQ1305224/A-17-A-2233-X-Y-63326089

Description:

AC/DC Power Supply Quad-OUT 5V/12V/-12V/24V 19A/5A/5A/2.5A 170W 24-Pin

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

ZWQ1305224/A Details
Packing And Shipping
Payment Method
Quality Control

TDK,ZWQ1305224/A is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for ZWQ1305224/A to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Power module type	封闭式
Output Voltage	5 VDC
Transformation efficiency	72%
Operating Temperature Range	-10°C~60°C（有降额）
Termination type	PCB
Output Current	5 A
Output Power	170 W
Input Voltage	85 VAC to 265 VAC
工厂最小包装	1
寿命周期	量产
ROHS	no
Length	225 mm
Width	106 mm
Height	35 mm
Circuit Branch Number	1 Output
Package	8.86"长x4.17"宽x1.38"高（225.0mmx106.0mmx35.0mm）
