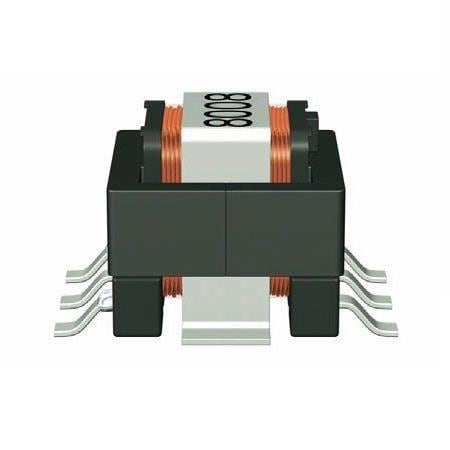

Pictures for reference only, please check the datasheet

B82801B0724A060

Name: B82801B0724A060
Brand: TDK
SKU: F001-B82801B0724A060-17-A-0000-X-Y-871-B82801B724A60
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

TDK

Mfr. Part #:

B82801B0724A060

Walsoon Tech #:

F001-B82801B0724A060-17-A-0000-X-Y-871-B82801B724A60

Description:

1：60 电流互感器 50kHz ~ 1MHz 初级侧 0.8 毫欧，次级侧 1.98 欧姆 720µH 表面贴装型

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

B82801B0724A060 Details
Packing And Shipping
Payment Method
Quality Control

TDK,B82801B0724A060 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for B82801B0724A060 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Rated Current	20 A
Frequency Range	50 kHz to 1 MHz
Turns ratio	1:60
Termination type	SMD/SMT
Inductance	720 uH
工厂最小包装	1
寿命周期	量产
ROHS	no
Package	0.280"长x0.320"宽(7.11mmx8.13mm)
Secondary coil impedance	1.98 Ohms
Height	5.08 mm
Length	8.13 mm
Width	7.11 mm
