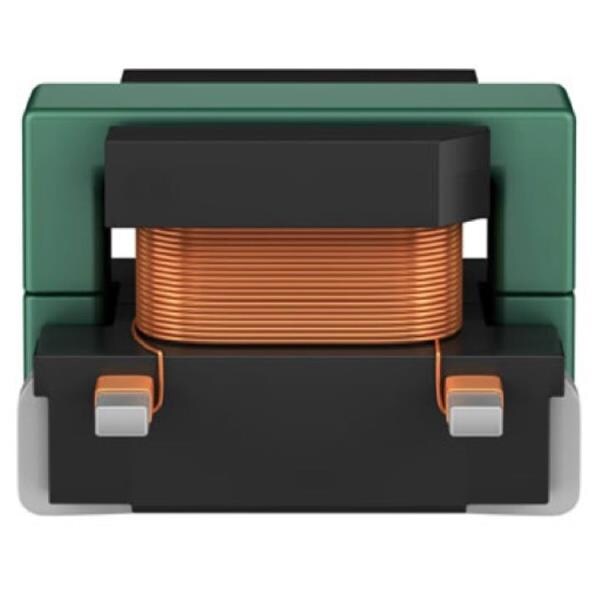

Pictures for reference only, please check the datasheet

B82801A1135A125

Name: B82801A1135A125
Brand: TDK
SKU: F00304-B82801A1135A125-17-A-0000-X-Y-3414896
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

TDK

Mfr. Part #:

B82801A1135A125

Walsoon Tech #:

F00304-B82801A1135A125-17-A-0000-X-Y-3414896

Description:

电流变压器 1280uH 36V 2.5mOhms N1:N2=1:125

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

B82801A1135A125 Details
Packing And Shipping
Payment Method
Quality Control

TDK,B82801A1135A125 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for B82801A1135A125 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Frequency Range	50 kHz to 1 MHz
Turns ratio	1:125
Inductance	1.28 mH
Termination type	SMD/SMT
工厂最小包装	600
寿命周期	量产
ROHS	yes
Height	3.5 mm
Secondary coil impedance	15 Ohms
Width	3.5 mm
Length	4.85 mm
