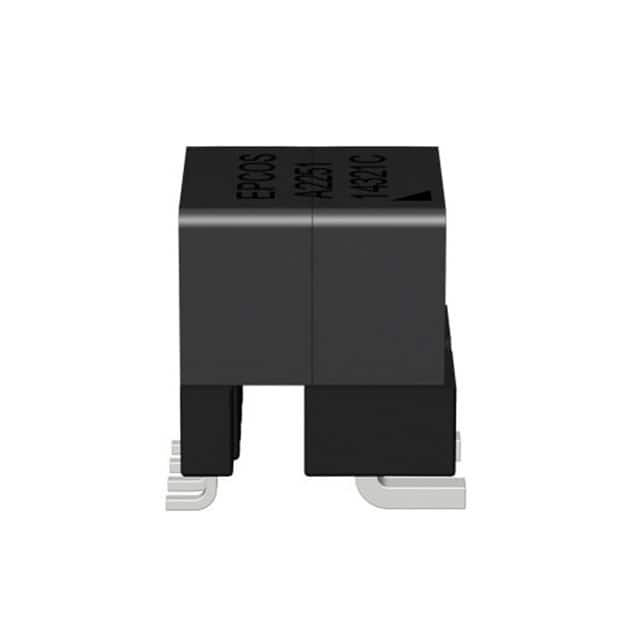

Pictures for reference only, please check the datasheet

B78419A2251A003

Name: B78419A2251A003
Brand: TDK
SKU: F006-B78419A2251A003-17-C-0000-X-Y-C5594222
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

TDK

Mfr. Part #:

B78419A2251A003

Walsoon Tech #:

F006-B78419A2251A003-17-C-0000-X-Y-C5594222

Description:

1：100 电流互感器 50kHz ~ 250kHz 初级侧 0.5 毫欧，次级侧 3.1 欧姆 7mH 表面贴装型

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

B78419A2251A003 Details
Packing And Shipping
Payment Method
Quality Control

TDK,B78419A2251A003 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for B78419A2251A003 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Termination type	SMD/SMT
Frequency Range	50 kHz to 250 kHz
Inductance	7 mH
工厂最小包装	1
寿命周期	量产
ROHS	no
Height	11.5 mm
Package	0.504"长x0.535"宽（12.80mmx13.60mm）
Length	14.4 mm
Width	12.8 mm
Secondary coil impedance	3.1 Ohms
