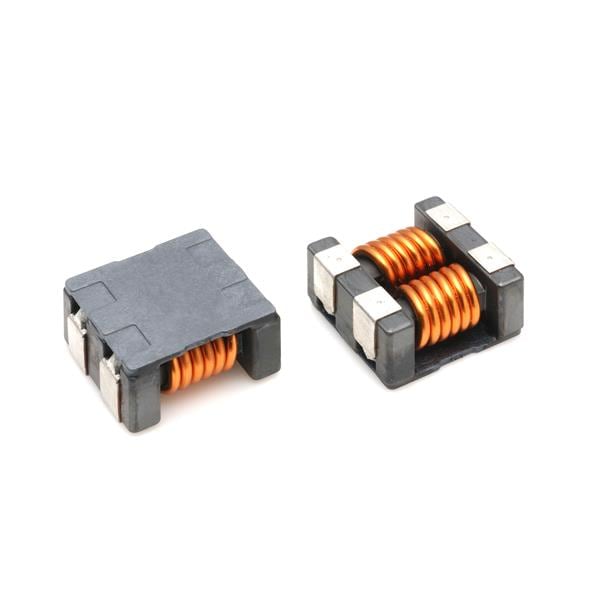

Pictures for reference only, please check the datasheet

ACM1211-701-2PL-TL01

Name: ACM1211-701-2PL-TL01
Brand: TDK
SKU: F001-ACM1211-701-2PL-TL01-17-A-0000-X-Y-810-ACM12117012PLTL1
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

TDK

Mfr. Part #:

Walsoon Tech #:

F001-ACM1211-701-2PL-TL01-17-A-0000-X-Y-810-ACM12117012PLTL1

Description:

8A 700Ω @ 100MHz 80V 6mΩ 电源线 -40℃ ~ +85℃

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

ACM1211-701-2PL-TL01 Details
Packing And Shipping
Payment Method
Quality Control

TDK,ACM1211-701-2PL-TL01 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for ACM1211-701-2PL-TL01 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	4844 (1211 metric)
Rated Current	8 A
工厂最小包装	500
寿命周期	量产
ROHS	no
D.C. Rated voltage VDC	80V
Operating Temperature Range	- 40 C~+ 85 C
DC Resistance DCR	6 mOhms
Impedance	700 Ohms
Termination type	SMD/SMT
Length	12 mm
Width	11 mm
Inductor@frequency	1.33 uH
Height	6 mm
