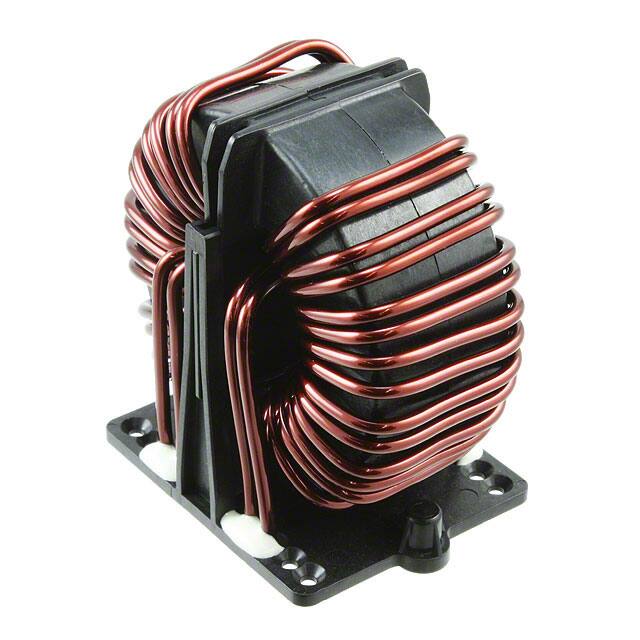

Pictures for reference only, please check the datasheet

RB8522-36-1M5

Name: RB8522-36-1M5
Brand: Schaffner
SKU: F018-RB8522-36-1M5-1445-C-0000-X-Y-10145439
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Schaffner

Mfr. Part #:

RB8522-36-1M5

Walsoon Tech #:

F018-RB8522-36-1M5-1445-C-0000-X-Y-10145439

Description:

1.5mH @ 400Hz 2 Line Common Mode Choke Through Hole 36A DCR 3mOhm (Typ)

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

RB8522-36-1M5 Details
Packing And Shipping
Payment Method
Quality Control

Schaffner,RB8522-36-1M5 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for RB8522-36-1M5 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Rated Current	36 A
Package	50.5 mm x 45.24 mm x 80 mm
工厂最小包装	20
寿命周期	量产
ROHS	yes
Length	50.5 mm
Width	45.24 mm
DC Resistance DCR	3 mOhms
Height	80 mm
Termination type	通孔
Operating Temperature Range	- 40 C~+ 125 C
Inductor@frequency	1.5 mH
