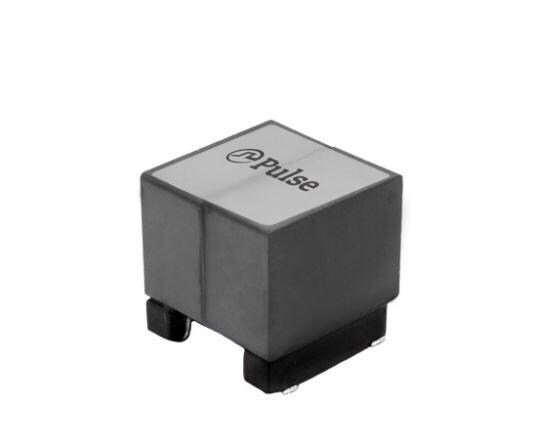

Pictures for reference only, please check the datasheet

PA5141.205NLT

Name: PA5141.205NLT
Brand: Pulse
SKU: F004-PA5141.205NLT-1084-A-0000-X-Y-553-PA5141.205NLTCT-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Pulse

Mfr. Part #:

PA5141.205NLT

Walsoon Tech #:

F004-PA5141.205NLT-1084-A-0000-X-Y-553-PA5141.205NLTCT-ND

Description:

Common Mode Filters / Chokes SMT Common Mode Chokes, EP22 Platforms, 23x24x23mm, 190uH

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

PA5141.205NLT Details
Packing And Shipping
Payment Method
Quality Control

Pulse,PA5141.205NLT is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for PA5141.205NLT to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	23 mm24 mm23 mm
Rated Current	30 A
工厂最小包装	45
寿命周期	量产
ROHS	yes
Inductor@frequency	190 uH
Operating Temperature Range	- 40 C~+ 125 C
Width	24 mm
DC Resistance DCR	1.35 mOhms
Impedance	1.35 kOhms
Length	23 mm
Height	23 mm
