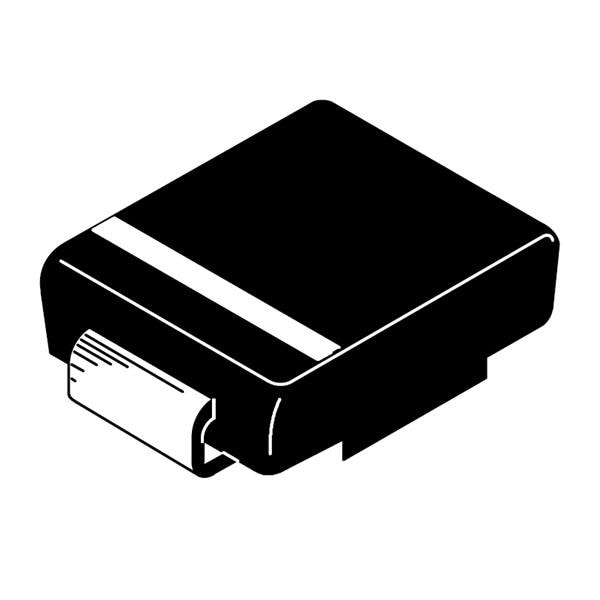

Pictures for reference only, please check the datasheet

SZ1SMB5940BT3G

Name: SZ1SMB5940BT3G
Brand: ON
SKU: F001-SZ1SMB5940BT3G-4-A-0000-X-Y-863-SZ1SMB5940BT3G
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Mfr. Part #:

SZ1SMB5940BT3G

Walsoon Tech #:

F001-SZ1SMB5940BT3G-4-A-0000-X-Y-863-SZ1SMB5940BT3G

Description:

DIODE ZENER 43V 3W SMB

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

SZ1SMB5940BT3G Details
Packing And Shipping
Payment Method
Quality Control

ON,SZ1SMB5940BT3G is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for SZ1SMB5940BT3G to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	SMB(DO-214AA)
zener voltage	43V
Operating Temperature Range	-65℃~+150℃
Pd-Power Dissipation	3W
zener impedance	53Ω
Test current	8.7mA
Qualification level	AEC-Q101
Tolerance	±5%
Operating Temperature-Max	+150℃
Operating Temperature-Min	-65℃
工厂最小包装	2500
寿命周期	量产
ROHS	no
Termination type	贴片
Vf-Forward Voltage	1.5V
Maximum zener current	34mA
Reverse Leakage Current	1uA
