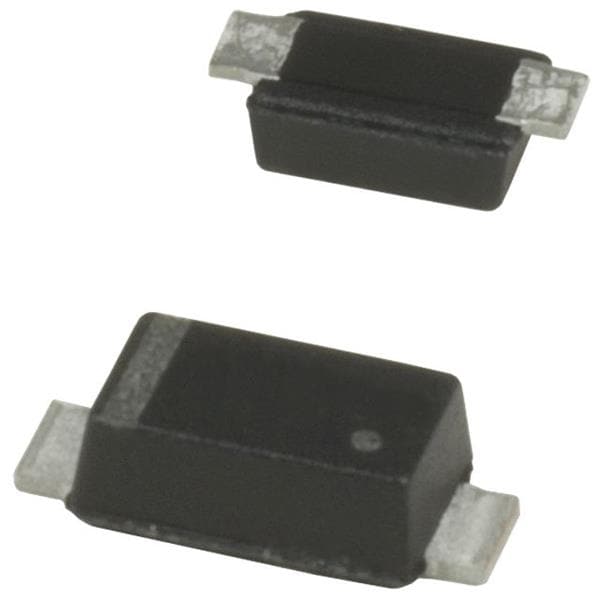

Pictures for reference only, please check the datasheet

SS13HE

Name: SS13HE
Brand: ON
SKU: F001-SS13HE-4-A-0000-X-Y-512-SS13HE
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Mfr. Part #:

SS13HE

Walsoon Tech #:

F001-SS13HE-4-A-0000-X-Y-512-SS13HE

Description:

二极管肖特基 30V 1A 表面贴装型 SOD-323HE

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

SS13HE Details
Packing And Shipping
Payment Method
Quality Control

ON,SS13HE is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for SS13HE to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Vr-reverse voltage	30V
Forward Surge Current	25A
Operating Temperature Range	-55℃~+150℃
If-forward Current	1A
Package	SOD-323HE-2
Operating Temperature-Max	+150℃
junction capacitance	55pF
Vf-Forward Voltage	550mV
Operating Temperature-Min	-55℃
Reverse recovery time	5.6nS
工厂最小包装	3000
寿命周期	量产
ROHS	no
Termination type	贴片
Reverse Leakage Current	50uA
Temperature Coefficient	肖特基
