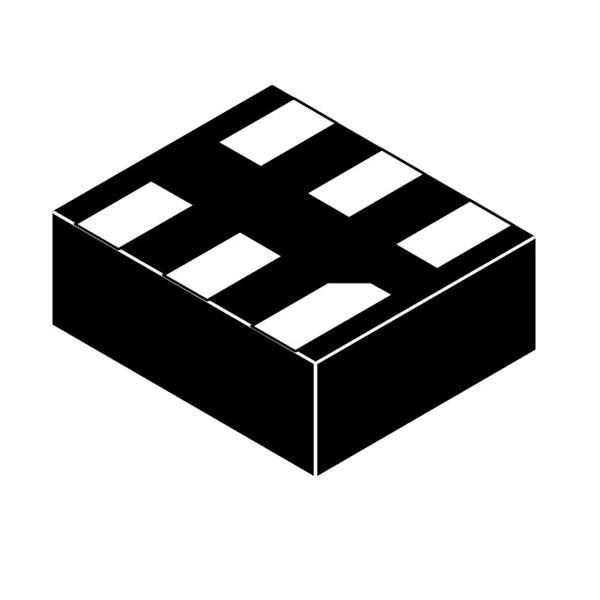

Pictures for reference only, please check the datasheet

NSPM8181MUTBG

Name: NSPM8181MUTBG
Brand: ON
SKU: F001-NSPM8181MUTBG-4-A-0000-X-Y-863-NSPM8181MUTBG
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Mfr. Part #:

NSPM8181MUTBG

Walsoon Tech #:

F001-NSPM8181MUTBG-4-A-0000-X-Y-863-NSPM8181MUTBG

Description:

30V 夹子 100A（8/20µs） Ipp TVS - 二极管表面贴装型 6-UDFN（1.8x2）

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

NSPM8181MUTBG Details
Packing And Shipping
Payment Method
Quality Control

ON,NSPM8181MUTBG is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for NSPM8181MUTBG to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	UDFN-6
Polarity	单向通道
VBR	20V
VRWM	18V
Operating Temperature-Min	-55℃
Peak Pulse Current	100A
Clamping voltage	30V
junction capacitance	1nF
Operating Temperature-Max	+125℃
Operating Temperature Range	-55℃~+125℃
工厂最小包装	3000
寿命周期	量产
ROHS	no
Maximum Ppp	3kW
Termination type	贴片
Vr-reverse voltage	18V
