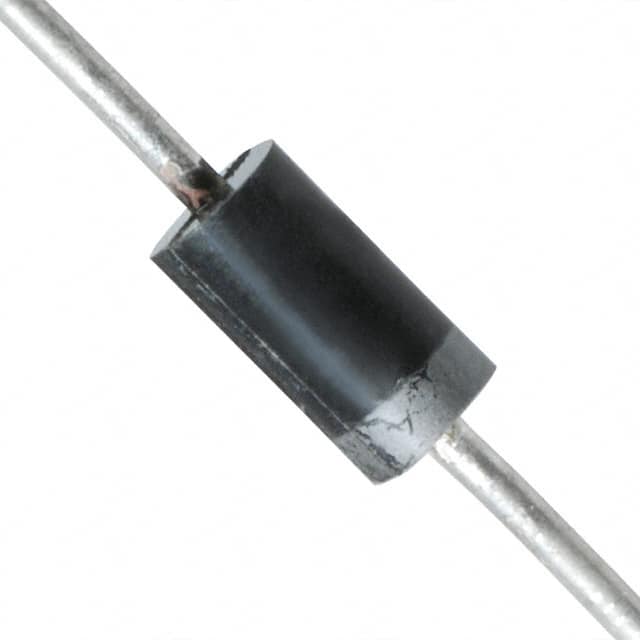

Pictures for reference only, please check the datasheet

1N4748A-TP

Name: 1N4748A-TP
Brand: MCC
SKU: F012-1N4748A-TP-40-A-1745-X-N-V79:2366_23254742
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

MCC

Mfr. Part #:

1N4748A-TP

Walsoon Tech #:

F012-1N4748A-TP-40-A-1745-X-N-V79:2366_23254742

Description:

Zener Diode Single 22V 5% 23Ohm 1000mW 2-Pin DO-41G T/R

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

1N4748A-TP Details
Packing And Shipping
Payment Method
Quality Control

MCC,1N4748A-TP is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for 1N4748A-TP to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Test current	11.5mA
zener impedance	23Ω
Operating Temperature Range	-65℃~+200℃
Package	DO-41G
zener voltage	22V
Pd-Power Dissipation	1W
Operating Temperature-Min	-65℃
Operating Temperature-Max	+200℃
Tolerance	±5%
工厂最小包装	1
寿命周期	停产
ROHS	no
Termination type	通孔
Vf-Forward Voltage	1.2V
Reverse Leakage Current	5uA
Maximum zener current	41mA
