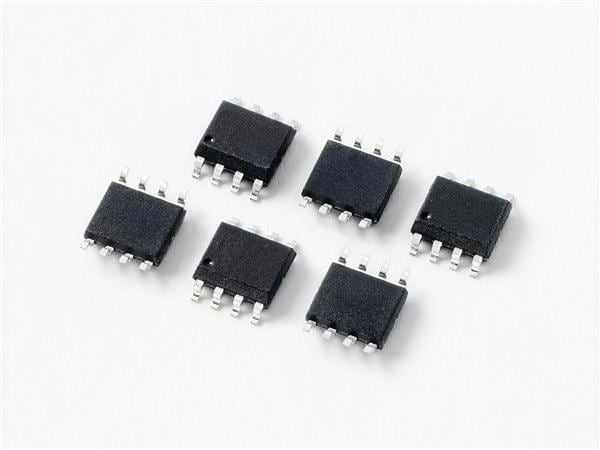

Pictures for reference only, please check the datasheet

LC03-3.3BTG

Name: LC03-3.3BTG
Brand: Littelfuse
SKU: F001-LC03-3.3BTG-8-A-0000-X-Y-576-LC03-3.3BTG
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Littelfuse

Mfr. Part #:

LC03-3.3BTG

Walsoon Tech #:

F001-LC03-3.3BTG-8-A-0000-X-Y-576-LC03-3.3BTG

Description:

17V Clamp 150A (8/20µs) Ipp Tvs Diode Surface Mount 8-SOIC

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

LC03-3.3BTG Details
Packing And Shipping
Payment Method
Quality Control

Littelfuse,LC03-3.3BTG is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for LC03-3.3BTG to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	SOIC-8
Polarity	单向通道
VBR	3.3V
VRWM	3.3V
junction capacitance	9pF
Peak Pulse Current	150A
Clamping voltage	17V
Operating Temperature-Max	+125℃
Operating Temperature Range	-40℃~+125℃
Operating Temperature-Min	-40℃
工厂最小包装	2500
寿命周期	量产
ROHS	no
Maximum Ppp	3.3kW
Vr-reverse voltage	3.3V
Termination type	贴片
Pd-Power Dissipation	3.3kW
