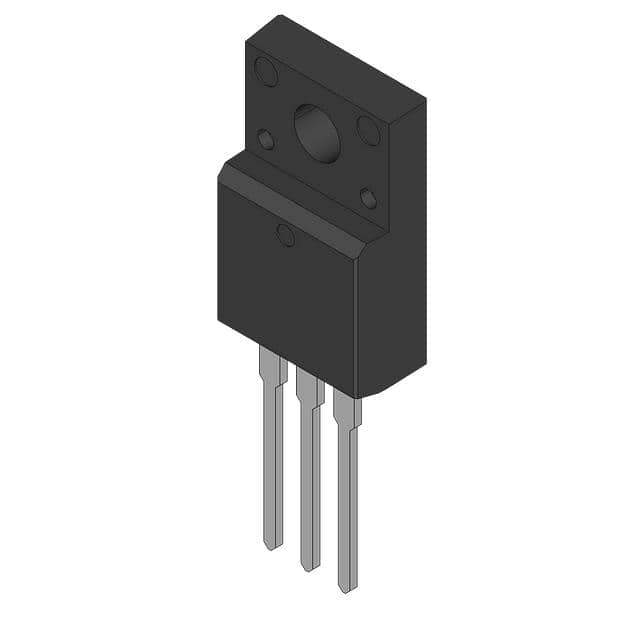

Pictures for reference only, please check the datasheet

IRFB7740PBF

Name: IRFB7740PBF
Brand: Infineon
SKU: F01202-IRFB7740PBF-1-A-2451-X-N-E02:0323_07813752
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Infineon

Mfr. Part #:

IRFB7740PBF

Walsoon Tech #:

F01202-IRFB7740PBF-1-A-2451-X-N-E02:0323_07813752

Description:

Trans MOSFET N-CH 75V 87A 3-Pin(3+Tab) TO-220AB Tube

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

IRFB7740PBF Details
Packing And Shipping
Payment Method
Quality Control

Infineon,IRFB7740PBF is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for IRFB7740PBF to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Continuous drain current	87 A
Pd-Power Dissipation	143 W
Package	TO-220-3
工厂最小包装	1000
寿命周期	量产
ROHS	no
Width	4.4 mm
Rds On	7.3 mOhms
Operating Temperature Range	- 55 C~+ 175 C
Transistor polarity	MOSFET
Qg	81 nC
Height	15.65 mm
Circuit Branch Number	1 Channel
VDS	75 V
VGS	20 V
Termination type	Through Hole
Length	10 mm
