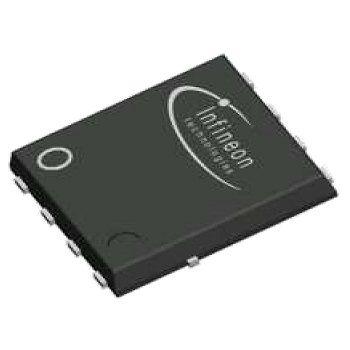

Pictures for reference only, please check the datasheet

IPG20N10S4L-35

Name: IPG20N10S4L-35
Brand: Infineon
SKU: F006-IPG20N10S4L-35-1-C-0000-X-Y-C41782020
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Infineon

Mfr. Part #:

IPG20N10S4L-35

Walsoon Tech #:

F006-IPG20N10S4L-35-1-C-0000-X-Y-C41782020

Description:

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

IPG20N10S4L-35 Details
Packing And Shipping
Payment Method
Quality Control

Infineon,IPG20N10S4L-35 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for IPG20N10S4L-35 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	TDSON-8
Continuous drain current	20 A
Qualification level	AEC-Q101
Pd-Power Dissipation	43 W
工厂最小包装	5000
寿命周期	量产
ROHS	no
Qg	13.4 nC
Height	1.27 mm
Operating Temperature Range	- 55 C~+ 175 C
Circuit Branch Number	2 Channel
VGS	10 V
Length	5.9 mm
Width	5.15 mm
Termination type	SMD/SMT
Transistor polarity	MOSFET
VDS	100 V
Rds On	35 mOhms
