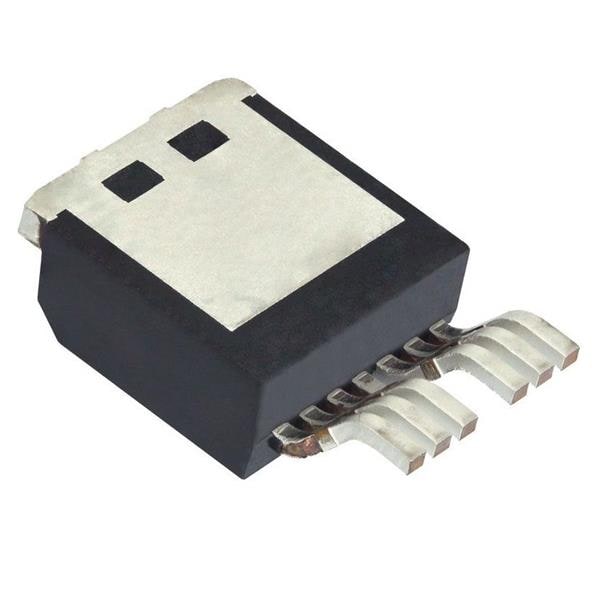

Pictures for reference only, please check the datasheet

IPB180N04S4-01

Name: IPB180N04S4-01
Brand: Infineon
SKU: F006-IPB180N04S4-01-1-C-0000-X-Y-C536569
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Infineon

Mfr. Part #:

IPB180N04S4-01

Walsoon Tech #:

F006-IPB180N04S4-01-1-C-0000-X-Y-C536569

Description:

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

IPB180N04S4-01 Details
Packing And Shipping
Payment Method
Quality Control

Infineon,IPB180N04S4-01 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for IPB180N04S4-01 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Pd-Power Dissipation	188 W
Qualification level	AEC-Q101
Package	TO-263-7
Continuous drain current	180 A
工厂最小包装	1000
寿命周期	量产
ROHS	no
Circuit Branch Number	1 Channel
VGS	20 V
Length	10 mm
Width	9.25 mm
Termination type	SMD/SMT
Transistor polarity	MOSFET
Rds On	1.3 mOhms
Qg	135 nC
Height	4.4 mm
Operating Temperature Range	- 55 C~+ 175 C
VDS	40 V
