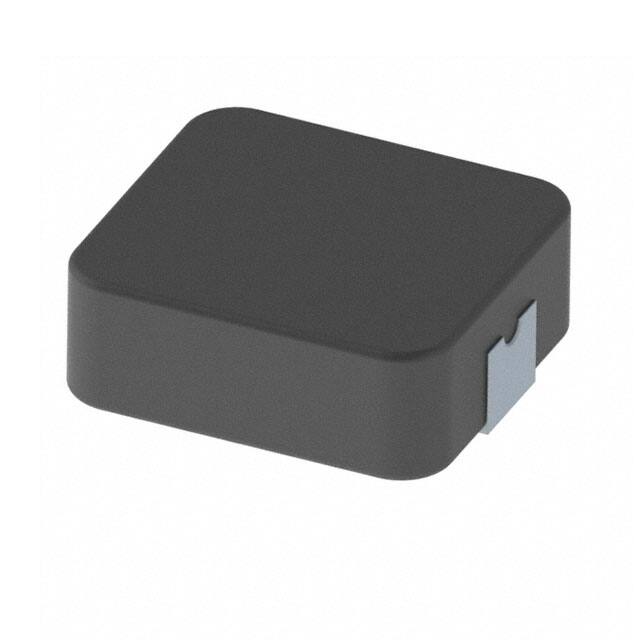

Pictures for reference only, please check the datasheet

HCM1A1104-1R5-R

Name: HCM1A1104-1R5-R
Brand: Eaton
SKU: F012-HCM1A1104-1R5-R-230-A-1714-X-Y-V72:2272_16660677
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Eaton

Mfr. Part #:

HCM1A1104-1R5-R

Walsoon Tech #:

F012-HCM1A1104-1R5-R-230-A-1714-X-Y-V72:2272_16660677

Description:

1.5uH 20% 11.5mm*10.3mm*4mm 4.2mΩ 14A 贴片 AEC-Q200

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

HCM1A1104-1R5-R Details
Packing And Shipping
Payment Method
Quality Control

Eaton,HCM1A1104-1R5-R is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for HCM1A1104-1R5-R to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Length	11.5mm
Width	10.3mm
DC Resistance DCR	4.2mΩ
Operating Temperature-Min	-55℃
Rated Current	14A
Saturation current	17A
Operating Temperature-Max	155℃
Tolerance	20%
Termination type	贴片
Qualification level	AEC-Q200
Height	4mm
Inductance Value	1.5uH
工厂最小包装	500
寿命周期	量产
ROHS	yes
Brand	Eaton
--	合金粉
shielding	屏蔽
Rated Current (DC current)	14 A
