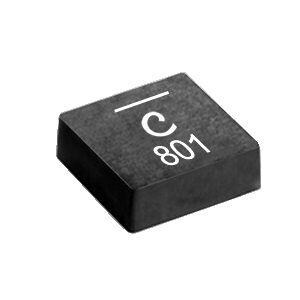

XAL5020-801MEC

Name: XAL5020-801MEC
Brand: Coilcraft
SKU: F006-XAL5020-801MEC-109-C-0000-X-Y-C20623505
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Coilcraft

Mfr. Part #:

XAL5020-801MEC

Walsoon Tech #:

F006-XAL5020-801MEC-109-C-0000-X-Y-C20623505

Description:

800nH 20% 5.48mm*5.28mm*2mm 11.8mΩ 13A 贴片 AEC-Q200

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

XAL5020-801MEC Details
Packing And Shipping
Payment Method
Quality Control

Coilcraft,XAL5020-801MEC is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for XAL5020-801MEC to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Height	2mm
Termination type	贴片
Tolerance	20%
Inductance Value	800nH
DC Resistance DCR	11.8mΩ
Qualification level	AEC-Q200
Width	5.28mm
Saturation current	12A
Rated Current	13A
Operating Temperature-Max	125℃
Operating Temperature-Min	-40℃
Length	5.48mm
工厂最小包装	1000
寿命周期	量产
ROHS	yes
Brand	Coilcraft
Rated Current (DC current)	13 A
Resonant frequency	64MHZ
--	混合成的
shielding	屏蔽
