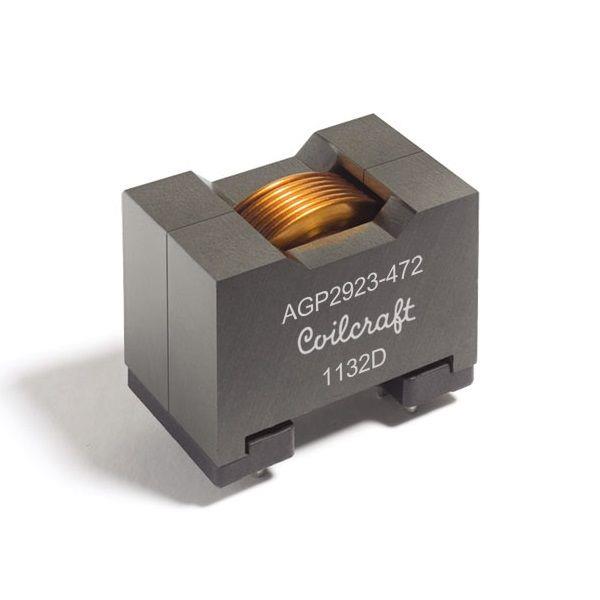

Pictures for reference only, please check the datasheet

AGP2923-153KL

Name: AGP2923-153KL
Brand: Coilcraft
SKU: DFBA748-Y-AGP2923-153KL-109-C-0000-X-Y
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Coilcraft

Mfr. Part #:

AGP2923-153KL

Walsoon Tech #:

DFBA748-Y-AGP2923-153KL-109-C-0000-X-Y

Description:

15uH 10% 26.92mm*16.97mm*23.24mm 2.6mΩ 26A 插件 AEC-Q200

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

AGP2923-153KL Details
Packing And Shipping
Payment Method
Quality Control

Coilcraft,AGP2923-153KL is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for AGP2923-153KL to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Length	26.92mm
Width	16.97mm
Rated Current (DC current)	26A
Termination type	插件
DC Resistance DCR	2.6mΩ
Inductance Value	15uH
Qualification level	AEC-Q200
Height	23.24mm
Tolerance	10%
Operating Temperature-Max	140℃
Saturation current	24.5A
--	铁氧体
Operating Temperature-Min	-40℃
shielding	屏蔽
Resonant frequency	16MHZ
工厂最小包装	25
寿命周期	量产
ROHS	yes
Brand	Coilcraft
