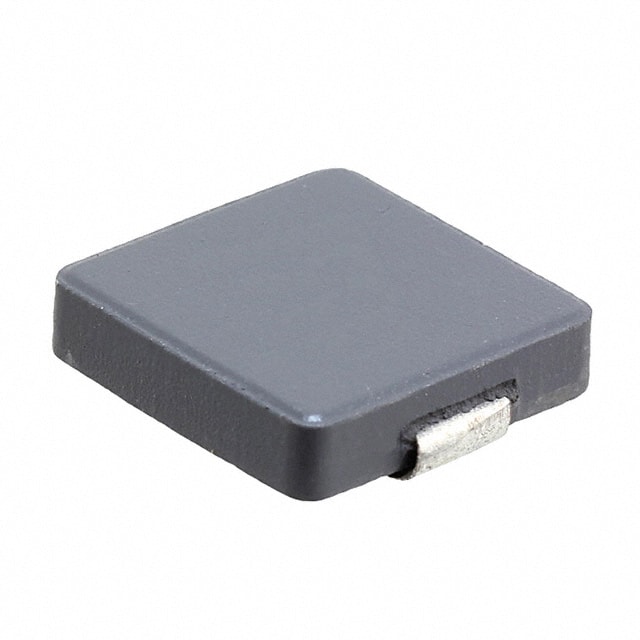

Pictures for reference only, please check the datasheet
SRP1238A-1R0M
In stock
- SRP1238A-1R0M Details
- Packing And Shipping
- Payment Method
- Quality Control
Specification
| Qualification level | AEC-Q200 |
| DC Resistance DCR | 3.5mΩ |
| Operating Temperature Range | -40°C~150°C |
| Tolerance | 20% |
| Termination type | 贴片 |
| Length | 13.5mm |
| Width | 12.5mm |
| Operating Temperature-Max | 150℃ |
| Operating Temperature-Min | -40℃ |
| Rated Current | 24A |
| Saturation current | 40A |
| Inductance Value | 1uH |
| Height | 3.5mm |
| 工厂最小包装 | 1 |
| 寿命周期 | 量产 |
| ROHS | yes |
| Rated Current (DC current) | 40 A |
| Brand | Bourns |
| Quality factor Q | 15@100kHZ |
| -- | 铁氧体 |
| shielding | 屏蔽 |
| Resonant frequency | 40MHZ |
