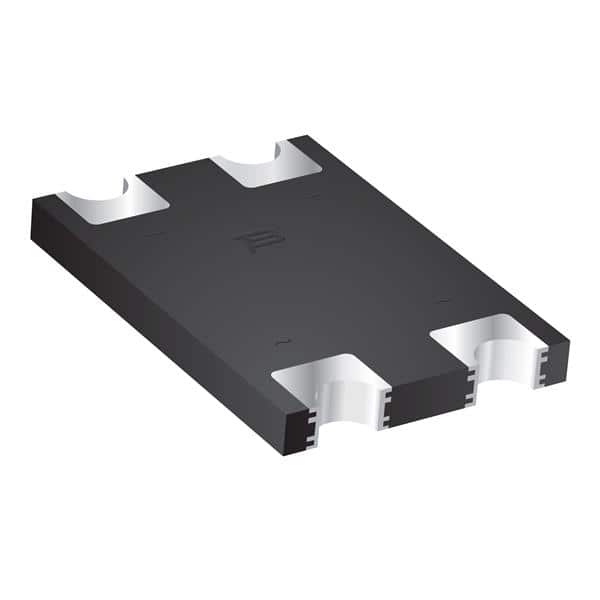

Pictures for reference only, please check the datasheet

CD-HD01

Name: CD-HD01
Brand: Bourns
SKU: F001-CD-HD01-21-A-0000-X-Y-652-CD-HD01
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Bourns

Mfr. Part #:

CD-HD01

Walsoon Tech #:

F001-CD-HD01-21-A-0000-X-Y-652-CD-HD01

Description:

桥式整流器 Single Phase 肖特基 100V 表面贴装型

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

CD-HD01 Details
Packing And Shipping
Payment Method
Quality Control

Bourns,CD-HD01 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for CD-HD01 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Vr-reverse voltage	100V
Operating Temperature Range	-55℃~+125℃
If-forward Current	1A
Operating Temperature-Max	+125℃
Vf-Forward Voltage	850mV
Operating Temperature-Min	-55℃
工厂最小包装	5000
寿命周期	量产
ROHS	no
Termination type	贴片
VRWM	100V
Temperature Coefficient	肖特基
Reverse Leakage Current	200uA
