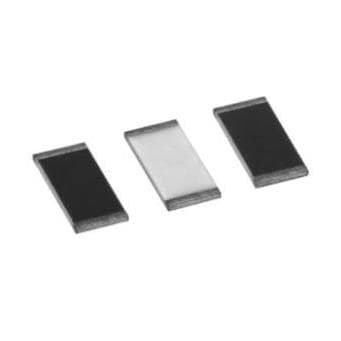

Pictures for reference only, please check the datasheet

PAT0603E90R9BST1

Name: PAT0603E90R9BST1
Brand: Vishay
SKU: F001-PAT0603E90R9BST1-67-A-0000-X-Y-71-PAT0603E90R9BST1
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Vishay

Mfr. Part #:

PAT0603E90R9BST1

Walsoon Tech #:

F001-PAT0603E90R9BST1-67-A-0000-X-Y-71-PAT0603E90R9BST1

Description:

90.9Ω ±0.1% 150mW 0603 ±25ppm/°C 75V 贴片 AEC-Q200

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

PAT0603E90R9BST1 Details
Packing And Shipping
Payment Method
Quality Control

Vishay,PAT0603E90R9BST1 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for PAT0603E90R9BST1 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Height	0.46mm
Length	1.63mm
Width	0.81mm
Temperature Factor	±25ppm/°C
Package	0603
Tolerance	±0.1%
Power	150mW
Qualification level	AEC-Q200
Resistance	90.9Ω
Termination type	贴片
Max. working Voltage	75V
工厂最小包装	1
寿命周期	量产
ROHS	yes
Operating Temperature Range	-55°C~+155°C
Pin numbers	2pin
Operating Temperature-Max	125℃
--	薄膜
Operating Temperature-Min	-55℃
英制封装	0603
