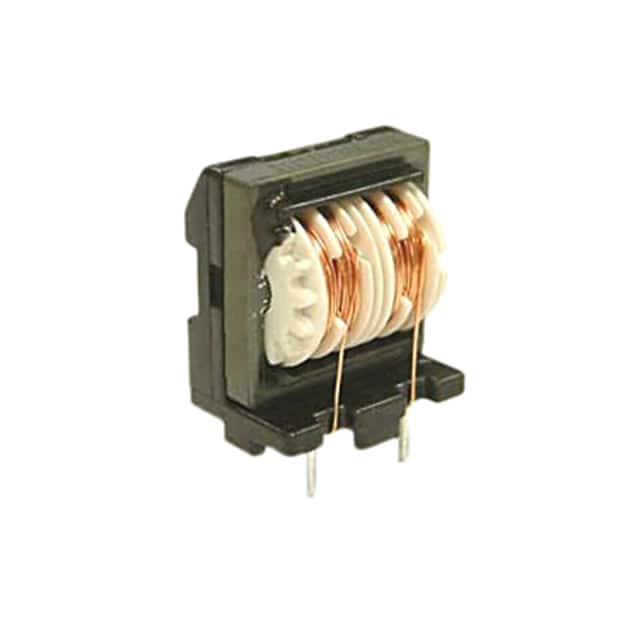

Pictures for reference only, please check the datasheet

ET3542-054

Name: ET3542-054
Brand: Triad Magnetics
SKU: F004-ET3542-054-731-A-0000-X-Y-237-2126-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Triad Magnetics

Mfr. Part #:

ET3542-054

Walsoon Tech #:

F004-ET3542-054-731-A-0000-X-Y-237-2126-ND

Description:

12mH @ 10kHz 2 线路共模扼流圈通孔 2.5A DCR 200 毫欧

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

ET3542-054 Details
Packing And Shipping
Payment Method
Quality Control

Triad Magnetics,ET3542-054 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for ET3542-054 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Rated Current	2.5 A
Package	26 mm38 mm45 mm
工厂最小包装	1
寿命周期	量产
ROHS	no
Operating Temperature Range	- 20 C~+ 105 C
Height	45 mm
Qualification level	ESD
Inductor@frequency	12 mH
DC Resistance DCR	200 mOhms
Length	26 mm
Width	38 mm
Termination type	Through Hole
