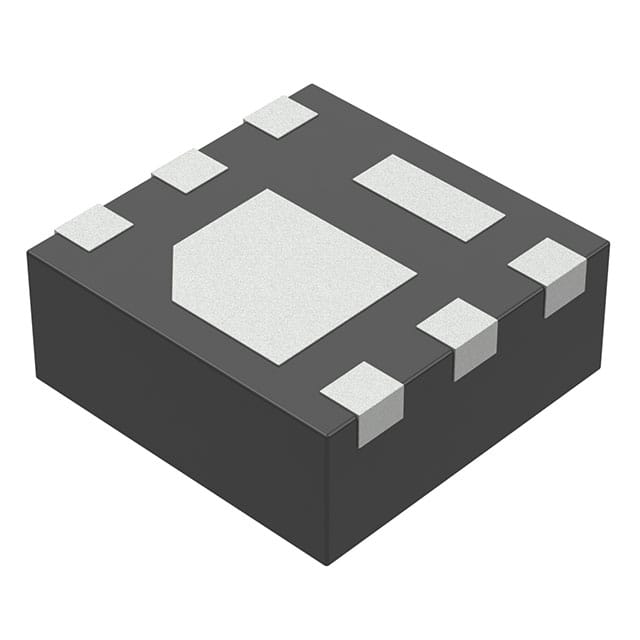

Pictures for reference only, please check the datasheet

CSD13202Q2

Name: CSD13202Q2
Brand: TI
SKU: F002-CSD13202Q2-5-A-2219-X-N-62309658
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Mfr. Part #:

CSD13202Q2

Walsoon Tech #:

F002-CSD13202Q2-5-A-2219-X-N-62309658

Description:

Trans MOSFET N-CH 12V 22A 6-Pin WSON EP T/R

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

CSD13202Q2 Details
Packing And Shipping
Payment Method
Quality Control

TI,CSD13202Q2 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for CSD13202Q2 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	SON-8(2x2)
Pd-Power Dissipation	2.7 W
Continuous drain current	14.4 A
工厂最小包装	3000
寿命周期	量产
ROHS	no
Width	2 mm
Operating Temperature Range	- 55 C~+ 150 C
Transistor polarity	MOSFET
Length	2 mm
Rds On	9.3 mOhms
VGS	4.5 V
Qg	5.1 nC
Height	0.75 mm
Circuit Branch Number	1 Channel
VDS	12 V
Termination type	SMD/SMT
