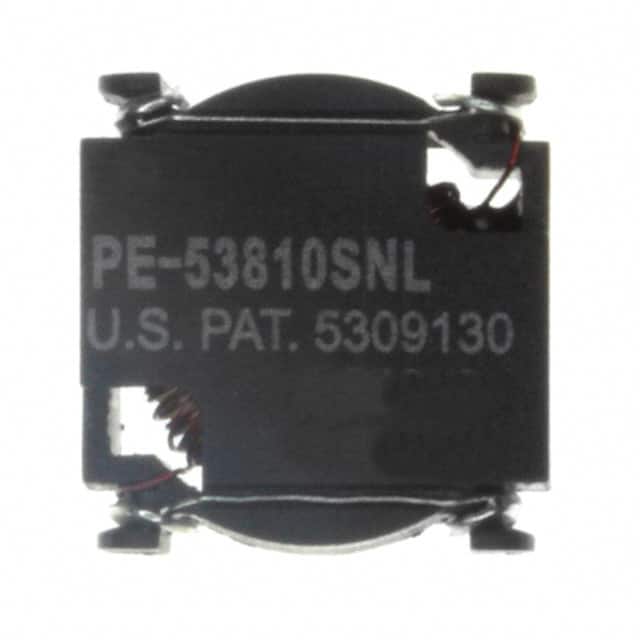

Pictures for reference only, please check the datasheet
PE-53810SNL
In stock
- PE-53810SNL Details
- Packing And Shipping
- Payment Method
- Quality Control
Specification
| Inductance Value | 176uH |
| Operating Temperature-Max | 130℃ |
| Operating Temperature-Min | -40℃ |
| Rated Current | 300mA |
| DC Resistance DCR | 1.4Ω |
| Height | 9.14mm |
| Tolerance | 20% |
| Termination type | 贴片 |
| Length | 11.18mm |
| Width | 11.05mm |
| Operating Temperature Range | -40°C~130°C |
| 工厂最小包装 | 45 |
| 寿命周期 | 量产 |
| ROHS | yes |
| Rated Current (DC current) | 300 mA |
| shielding | 屏蔽 |
| Brand | Pulse |
