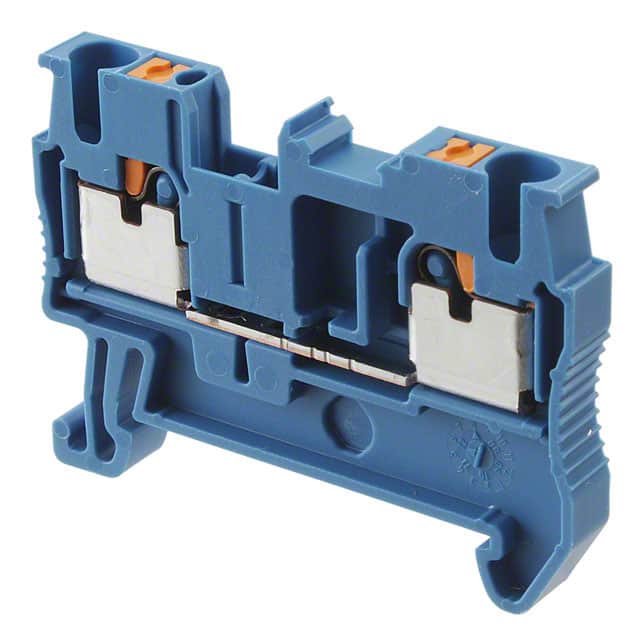

Pictures for reference only, please check the datasheet

3209523

Name: 3209523
Brand: Phoenix
SKU: F00304-3209523-201-A-0000-X-Y
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Phoenix

Mfr. Part #:

3209523

Walsoon Tech #:

F00304-3209523-201-A-0000-X-Y

Description:

端子块连接器 2 位置馈通式蓝色 12-26 AWG

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

3209523 Details
Packing And Shipping
Payment Method
Quality Control

Phoenix,3209523 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for 3209523 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Pin Number	1 Position
Termination type	推入式，弹簧
工厂最小包装	50
寿命周期	量产
ROHS	no
Rated Voltage	800 V
Wire Gauge	26 AWG to 12 AWG
Connector Type	馈通式
Package	48.5 mm*5.2 mm
Length	48.5 mm
Rated Current	24 A
Width	5.2 mm
Height	35.3 mm
