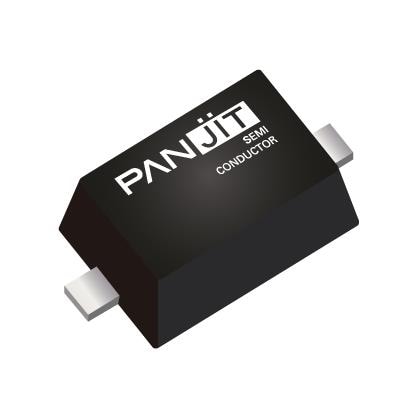

Pictures for reference only, please check the datasheet
PJSD15W_R1_00001
Manufacturer:
Mfr. Part #:
PJSD15W_R1_00001
Walsoon Tech #:
F001-PJSD15W_R1_00001-162-A-0000-X-Y-241-PJSD15W_R1_00001
Description:
PJSD15W
Delivery:
Payment:
PayPal, Credit Card, Wire Transfer, Western Union
In stock
- PJSD15W_R1_00001 Details
- Packing And Shipping
- Payment Method
- Quality Control
PANJIT,PJSD15W_R1_00001 is available at
Walsoon Tech.100% original and new guarantee. If comprehensive data for
PJSD15W_R1_00001 to optimize the supply chain, including costdown,
time-saving, cross references, parametric, counterfeit risk, alternative
components, obsolescence management forecasts is expected, please contact
our professional team.
Specification
| Package | SOD-323 |
| Polarity | 单向通道 |
| VBR | 16.7V |
| VRWM | 15V |
| junction capacitance | 120pF |
| Operating Temperature Range | -50℃~+150℃ |
| Operating Temperature-Max | +150℃ |
| Operating Temperature-Min | -55℃ |
| Peak Pulse Current | 1A |
| Clamping voltage | 24V |
| 工厂最小包装 | 5000 |
| 寿命周期 | 量产 |
| ROHS | no |
| Maximum Ppp | 350W |
| Termination type | 贴片 |
| Vr-reverse voltage | 15V |
| Pd-Power Dissipation | 350W |
