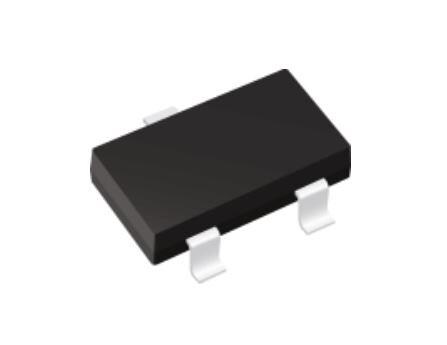

Pictures for reference only, please check the datasheet

PJA3461_R1_00001

Name: PJA3461_R1_00001
Brand: PANJIT
SKU: F004-PJA3461_R1_00001-162-A-0000-X-Y-3757-PJA3461_R1_00001CT-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

PANJIT

Mfr. Part #:

PJA3461_R1_00001

Walsoon Tech #:

F004-PJA3461_R1_00001-162-A-0000-X-Y-3757-PJA3461_R1_00001CT-ND

Datasheet:

Description:

SOT-23 ESD:- Polarity:P VDS V:-60 VGS \u00b1V:20 ID A:-1.9 RDS(on) Max. (m\u03a9) 10V:190 RDS(on) Max. (m\u03a9) 7V:- RDS(on) Max. (m\u03a9) 6V:- RDS(on) Max. (m\u03a9) 4.5V:240 RDS(on) Max. (m\u03a9) 2.5V:- RDS(on) Max. (m\u03a9) 1.8V:- RDS(on) Max. (m\u03a9) 1.5V:- RDS(on) Max. (m\u03a9) 1.2V:- Ciss Typ. pF:430 VGS(th) Max. V:-2.5 Qg Typ. (nC) 10V:8.3 Qg Typ. (nC) 4.5V:-

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

PJA3461_R1_00001 Details
Packing And Shipping
Payment Method
Quality Control

PANJIT,PJA3461_R1_00001 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for PJA3461_R1_00001 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Pd-Power Dissipation	1.25 W
Continuous drain current	1.9 A
Package	SOT-23-3
工厂最小包装	3000
寿命周期	量产
ROHS	yes
Operating Temperature Range	- 55 C~+ 150 C
Rds On	240 mOhms
Termination type	SMD/SMT
Circuit Branch Number	1 Channel
Transistor polarity	MOSFET
VGS	- 20 V, + 20 V
VDS	60 V
Qg	8.3 nC
