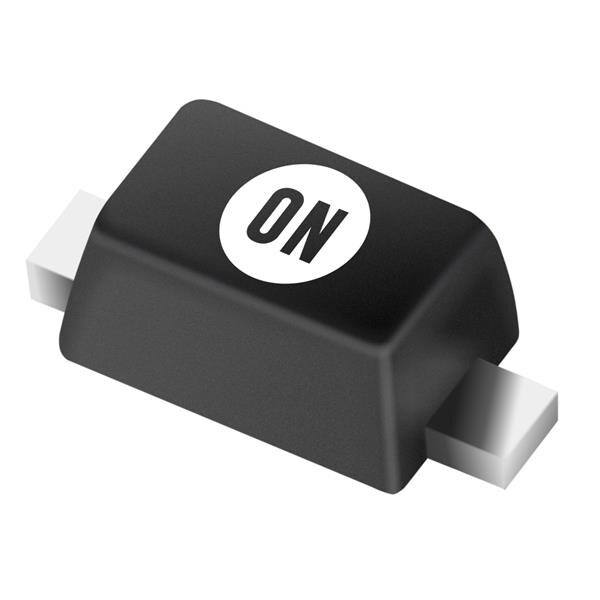

Pictures for reference only, please check the datasheet

SZESD5Z2.5T1G

Name: SZESD5Z2.5T1G
Brand: ON
SKU: F034-SZESD5Z2.5T1G-4-C-1752+-X-Y-1003001442040346
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Mfr. Part #:

SZESD5Z2.5T1G

Walsoon Tech #:

F034-SZESD5Z2.5T1G-4-C-1752+-X-Y-1003001442040346

Description:

SOD-523 EUT SNGL PB FREE

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

SZESD5Z2.5T1G Details
Packing And Shipping
Payment Method
Quality Control

ON,SZESD5Z2.5T1G is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for SZESD5Z2.5T1G to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Polarity	单向通道
VBR	4V
Qualification level	AEC-Q101
Package	SOD-523
Operating Temperature-Min	-55℃
Clamping voltage	10.9V
Peak Pulse Current	11A
Operating Temperature Range	-55℃~+150℃
junction capacitance	145pF
Operating Temperature-Max	+150℃
工厂最小包装	3000
寿命周期	量产
ROHS	no
Maximum Ppp	120W
Termination type	贴片
Pd-Power Dissipation	120W
Vr-reverse voltage	2.5V
Vf-Forward Voltage	1.1V
