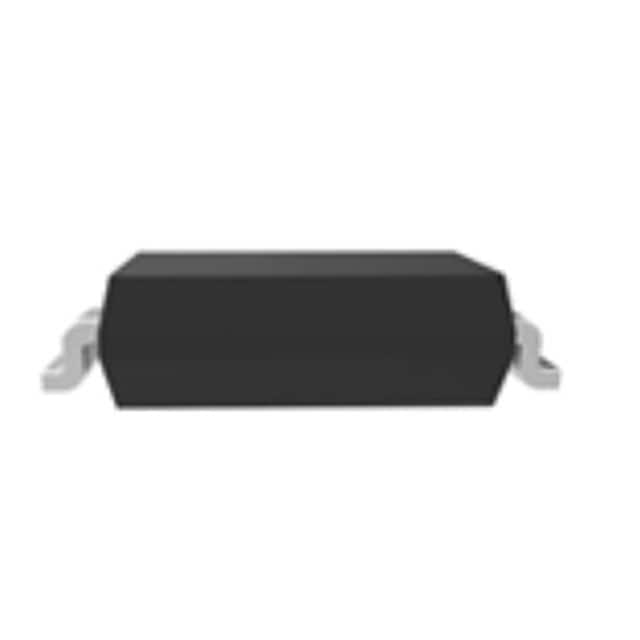

Pictures for reference only, please check the datasheet

BAV19WSHE3-TP

Name: BAV19WSHE3-TP
Brand: MCC
SKU: F004-BAV19WSHE3-TP-40-A-0000-X-N-353-BAV19WSHE3-TPTR-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

MCC

Mfr. Part #:

BAV19WSHE3-TP

Walsoon Tech #:

F004-BAV19WSHE3-TP-40-A-0000-X-N-353-BAV19WSHE3-TPTR-ND

Description:

二极管 - 通用，功率，开关 250mW 120Vr 71Mrs 100Vr 400mA 250mW

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

BAV19WSHE3-TP Details
Packing And Shipping
Payment Method
Quality Control

MCC,BAV19WSHE3-TP is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for BAV19WSHE3-TP to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Reverse recovery time	50nS
Vf-Forward Voltage	1.25V
Operating Temperature-Max	+150℃
Package	SOD-323
Vr-reverse voltage	100V
Operating Temperature Range	-65℃~+150℃
Operating Temperature-Min	-65℃
junction capacitance	1.5pF
If-forward Current	200mA
寿命周期	量产
ROHS	no
VRWM	120V
Configuration	独立式
Pd-Power Dissipation	250mW
Reverse Leakage Current	100nA
Termination type	贴片
