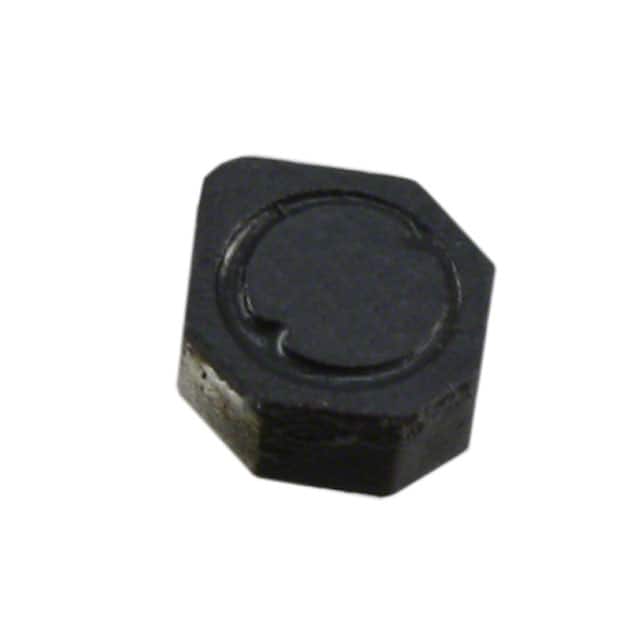

Pictures for reference only, please check the datasheet

SD3114-100-R

Name: SD3114-100-R
Brand: Eaton
SKU: F004-SD3114-100-R-230-A-0000-X-Y-513-1563-1-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Eaton

Mfr. Part #:

SD3114-100-R

Walsoon Tech #:

F004-SD3114-100-R-230-A-0000-X-Y-513-1563-1-ND

Description:

10uH 30% 3.1mm*3.1mm*1.4mm 458mΩ 570mA 贴片

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

SD3114-100-R Details
Packing And Shipping
Payment Method
Quality Control

Eaton,SD3114-100-R is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for SD3114-100-R to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

DC Resistance DCR	458mΩ
Tolerance	30%
Height	1.4mm
Width	3.1mm
Termination type	贴片
Inductance Value	10uH
Length	3.1mm
Rated Current	570mA
Operating Temperature-Min	-40℃
Operating Temperature-Max	125℃
Saturation current	780mA
工厂最小包装	1
寿命周期	量产
ROHS	yes
Rated Current (DC current)	780 mA
Brand	Eaton
shielding	屏蔽
--	铁氧体
