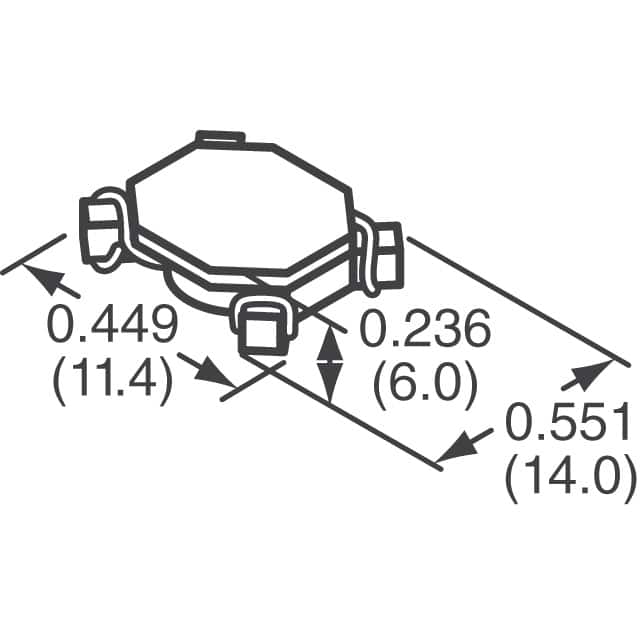

Pictures for reference only, please check the datasheet

CMS3-5-R

Name: CMS3-5-R
Brand: Eaton
SKU: F002-CMS3-5-R-230-A-2522-X-N-90191684
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Eaton

Mfr. Part #:

CMS3-5-R

Walsoon Tech #:

F002-CMS3-5-R-230-A-2522-X-N-90191684

Description:

Common Mode Chokes Dual 146uH 100kHz 3.1A 0.017Ohm DCR SMD T/R

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

CMS3-5-R Details
Packing And Shipping
Payment Method
Quality Control

Eaton,CMS3-5-R is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for CMS3-5-R to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Rated Current	3.1 A
Package	11.43 mm11.43 mm6 mm
工厂最小包装	1
寿命周期	量产
ROHS	no
DC Resistance DCR	17 mOhms
Termination type	表面贴装型
Inductor@frequency	146 uH
Length	11.43 mm
Width	11.43 mm
Operating Temperature Range	- 40 C~+ 160 C
Height	6 mm
