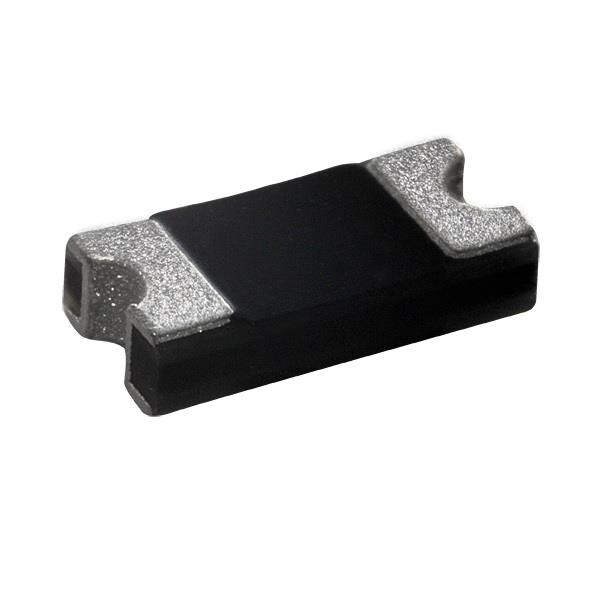

Pictures for reference only, please check the datasheet

ACDBAT320-HF

Name: ACDBAT320-HF
Brand: Comchip
SKU: F004-ACDBAT320-HF-79-A-0000-X-N-641-1974-2-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Comchip

Mfr. Part #:

ACDBAT320-HF

Walsoon Tech #:

F004-ACDBAT320-HF-79-A-0000-X-N-641-1974-2-ND

Description:

Diode Schottky 20V 3A Surface Mount 2010/DO-214AC

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

ACDBAT320-HF Details
Packing And Shipping
Payment Method
Quality Control

Comchip,ACDBAT320-HF is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for ACDBAT320-HF to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Vr-reverse voltage	20V
Qualification level	AEC-Q101
Forward Surge Current	80A
Package	DO-214AC
If-forward Current	3A
Operating Temperature Range	-55℃~+125℃
Vf-Forward Voltage	370mV
Operating Temperature-Min	-55℃
Operating Temperature-Max	+125℃
junction capacitance	120pF
工厂最小包装	1
寿命周期	停产
ROHS	no
Termination type	贴片
Reverse Leakage Current	200uA
Temperature Coefficient	肖特基
