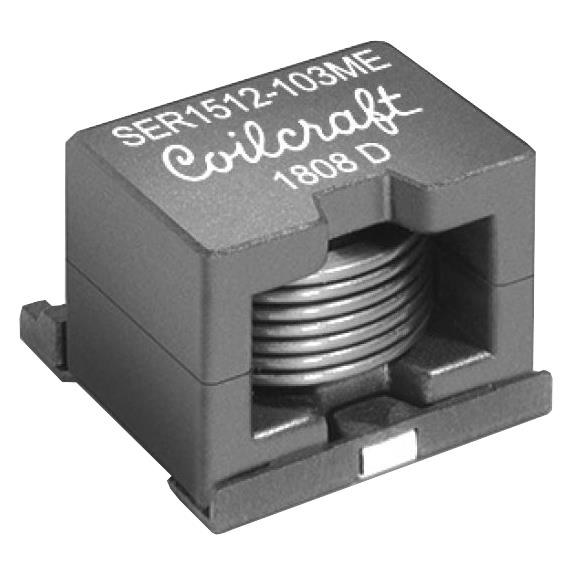

Pictures for reference only, please check the datasheet

SER1512-223MED

Name: SER1512-223MED
Brand: Coilcraft
SKU: F065-SER1512-223MED-109-C-0000-X-Y-1003001016189615
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Coilcraft

Mfr. Part #:

SER1512-223MED

Walsoon Tech #:

F065-SER1512-223MED-109-C-0000-X-Y-1003001016189615

Description:

22uH 20% 15.2mm*15.4mm*12mm 8.4mΩ 11.8A 贴片

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

SER1512-223MED Details
Packing And Shipping
Payment Method
Quality Control

Coilcraft,SER1512-223MED is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for SER1512-223MED to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Length	15.2mm
Termination type	贴片
DC Resistance DCR	8.4mΩ
Inductance Value	22uH
Width	15.4mm
Tolerance	20%
Height	12mm
Rated Current	11.8A
Saturation current	8A
Operating Temperature-Min	-40℃
Operating Temperature-Max	85℃
工厂最小包装	250
寿命周期	面世
ROHS	yes
Brand	Coilcraft
Rated Current (DC current)	11.8 A
--	铁氧体
shielding	屏蔽
Resonant frequency	14MHZ
