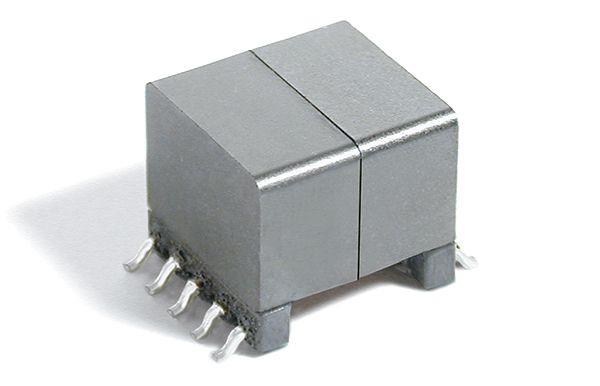

Pictures for reference only, please check the datasheet

NA5920-ALD

Name: NA5920-ALD
Brand: Coilcraft
SKU: DFBA748-Y-NA5920-ALD-109-C-0000-X-Y
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Coilcraft

Mfr. Part #:

NA5920-ALD

Walsoon Tech #:

DFBA748-Y-NA5920-ALD-109-C-0000-X-Y

Description:

音频变压器/信号变压器 NA5920 12W 0.013Ohms For LT8586

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

NA5920-ALD Details
Packing And Shipping
Payment Method
Quality Control

Coilcraft,NA5920-ALD is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for NA5920-ALD to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Inductance	4 uH
Secondary coil impedance	5.15 Ohms
Primary coil impedance	13 mOhms
Insulation voltage	1.5 kV
Frequency Range	140 kHz
Termination type	SMD/SMT
工厂最小包装	200
寿命周期	量产
ROHS	yes
Length	12.7 mm
Width	10.5 mm
Height	11.43 mm
