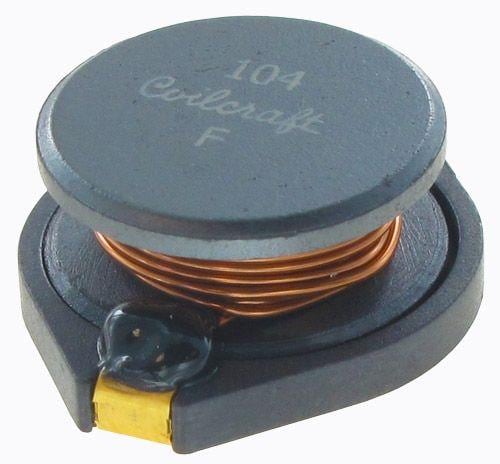

Pictures for reference only, please check the datasheet

DO5022P-223MLD

Name: DO5022P-223MLD
Brand: Coilcraft
SKU: DFBA174-Y-DO5022P-223MLD-109-C-24+-X-Y
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Coilcraft

Mfr. Part #:

DO5022P-223MLD

Walsoon Tech #:

DFBA174-Y-DO5022P-223MLD-109-C-24+-X-Y

Description:

22uH 20% 18.03mm*15.24mm*7.11mm 47mΩ 3.5A 贴片

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

DO5022P-223MLD Details
Packing And Shipping
Payment Method
Quality Control

Coilcraft,DO5022P-223MLD is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for DO5022P-223MLD to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Height	7.11mm
Tolerance	20%
Width	15.24mm
DC Resistance DCR	47mΩ
Inductance Value	22uH
Termination type	贴片
Length	18.03mm
Saturation current	7.2A
Operating Temperature-Min	-40℃
Rated Current	3.5A
Operating Temperature-Max	85℃
工厂最小包装	250
寿命周期	量产
ROHS	yes
Brand	Coilcraft
Rated Current (DC current)	3.5 A
Resonant frequency	20MHZ
--	铁氧体
shielding	不屏蔽
